Selected Work
A comprehensive record of our completed and ongoing structural design assignments across Maharashtra and Karnataka — institutional campuses, high-rise residential, industrial facilities, commercial buildings and infrastructure works.
Flagship — Residential

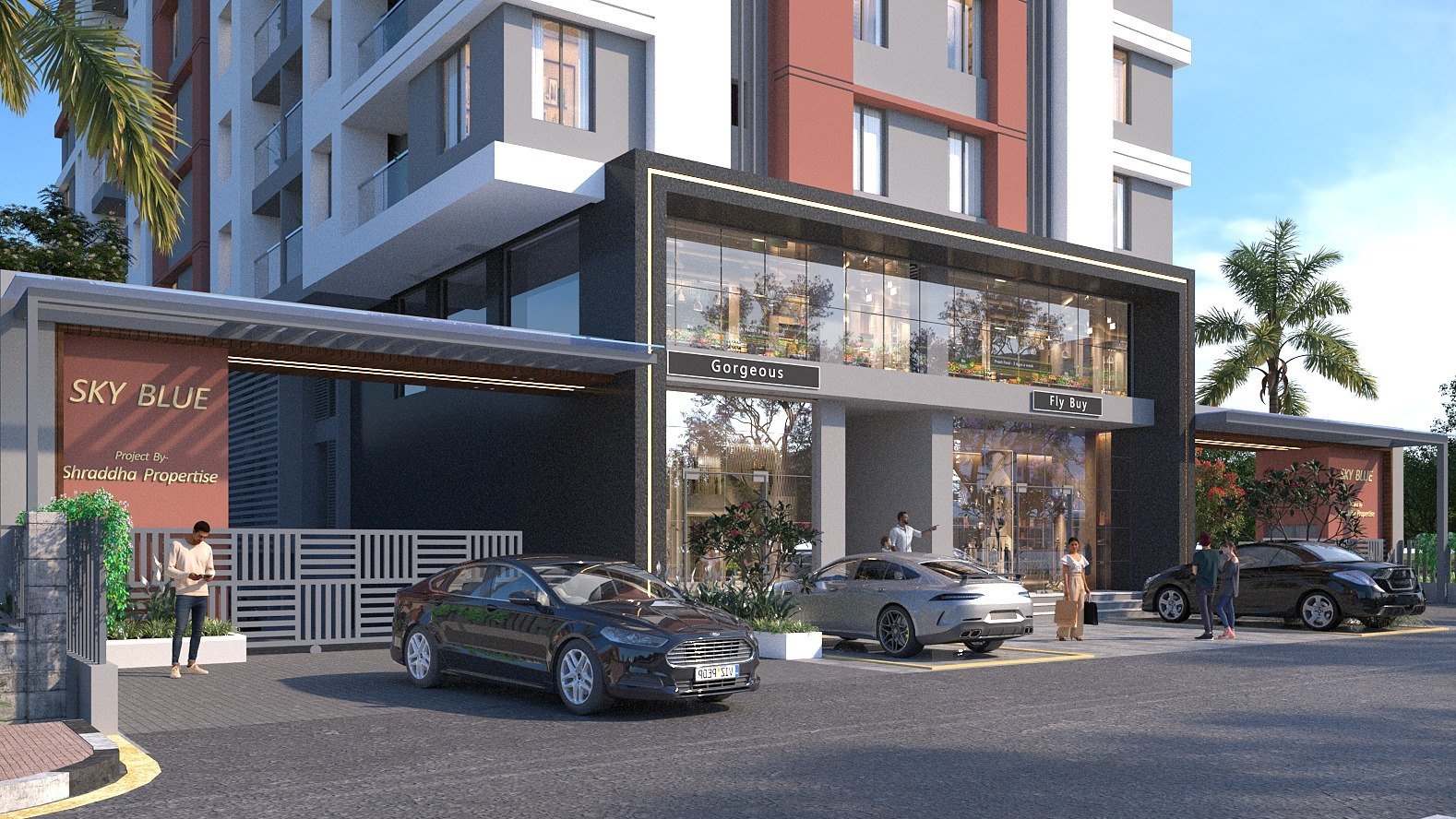

Dighi, Pune · 1,65,000 sq.ft · 2 Basement + Ground + 15 Floors
A 2-basement, ground+15-storey residential and commercial tower developed by Mr. Santosh Lahane, spanning approximately 1,65,000 sq.ft. Our structural design team delivered the RCC framework for this high-rise, balancing structural efficiency with the architectural vision of a landmark residential address in Dighi.
Flagship — Industrial & Commercial

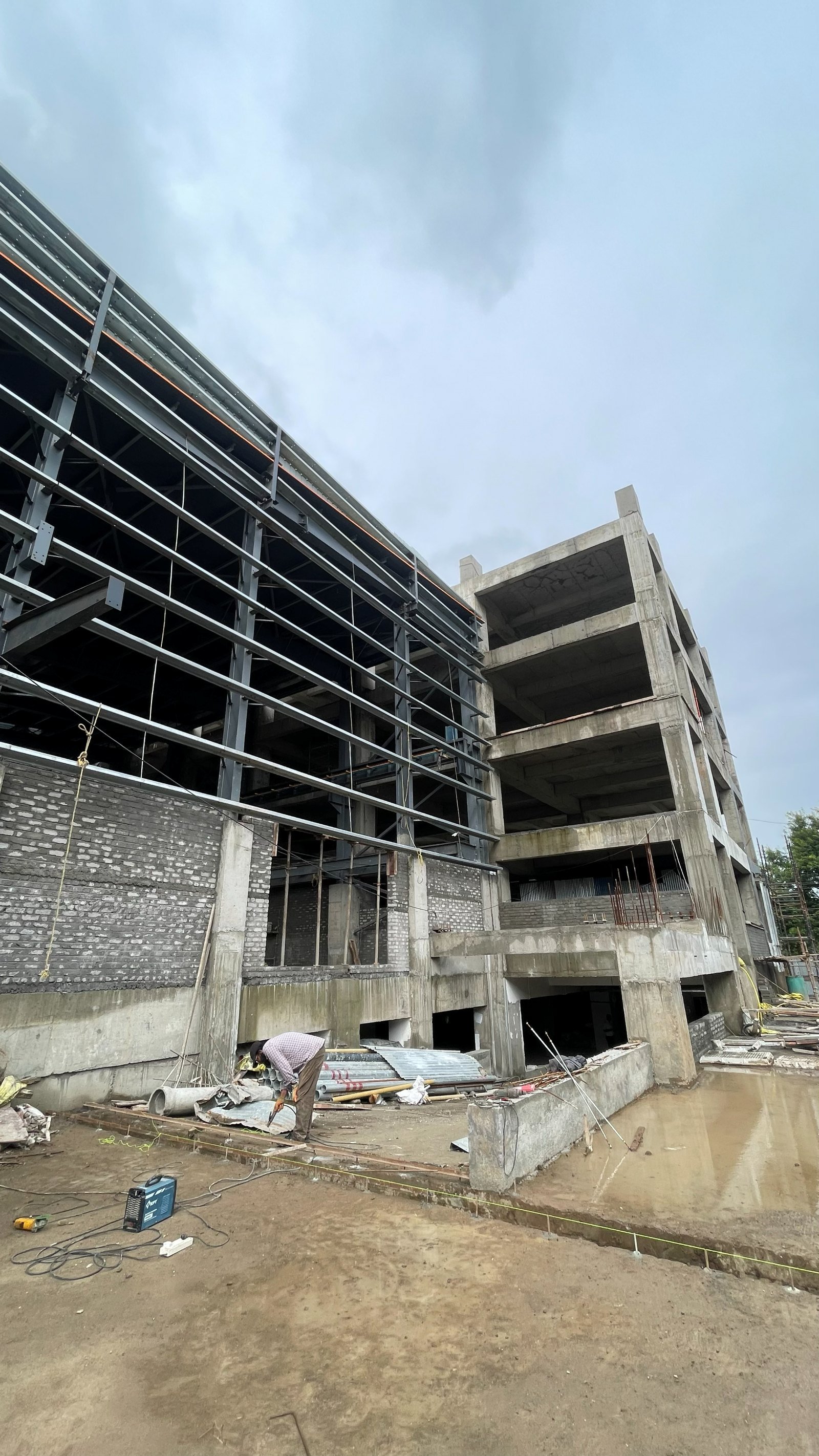

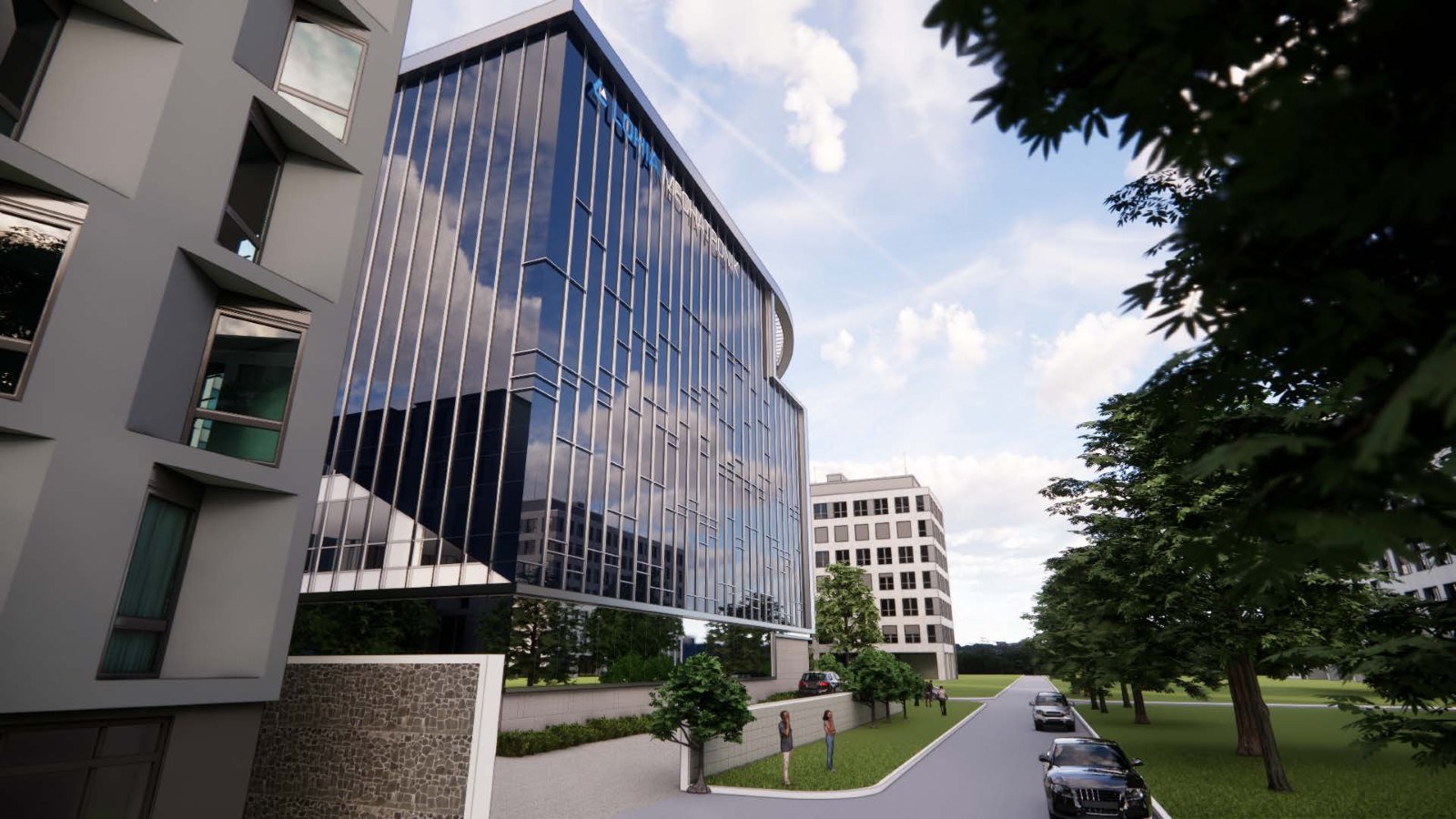

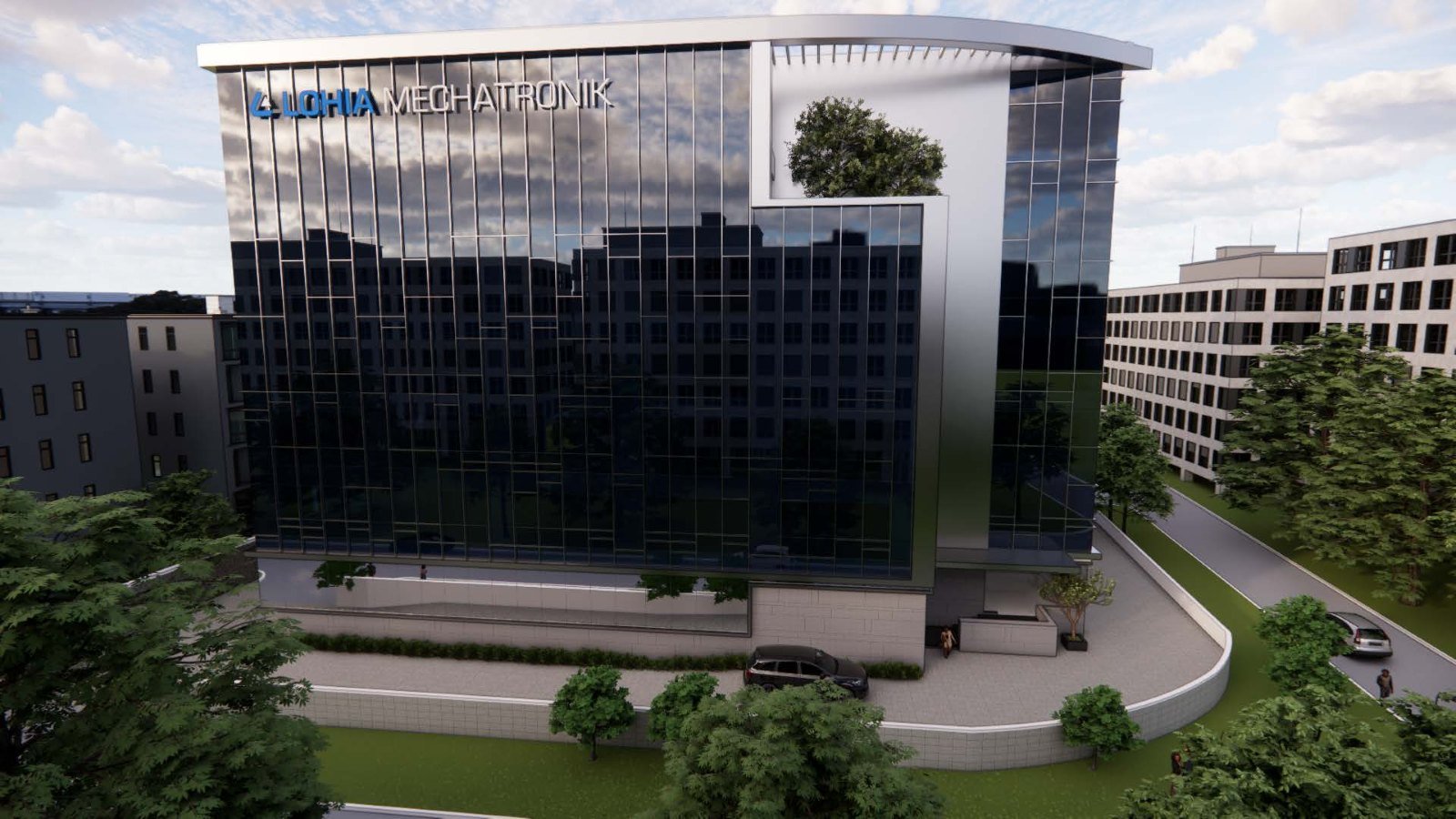

Ramtekdi Industrial Area, Hadapsar, Pune · RCC 70,000 sq.ft + PEB 10,610 sq.ft · Basement + Ground + 6 Floors
An integrated industrial and commercial facility combining 70,000 sq.ft of RCC construction with a 10,610 sq.ft pre-engineered building, rising to basement+ground+6 floors. The first floor slab was designed to carry at least two CNC machines at approximately 36 kN/sq.m in the machine bays, with the remaining working area designed for a 24 kN/sq.m live load.
First floor slab, prior to casting Ramtekdi Industrial Area, Hadapsar, Pune Designed for two CNC machines at ~36 kN/sq.m in the machine bays
Flagship — Institutional
Buldhana District, Maharashtra · Medical, Nursing & Unani Education Campuses

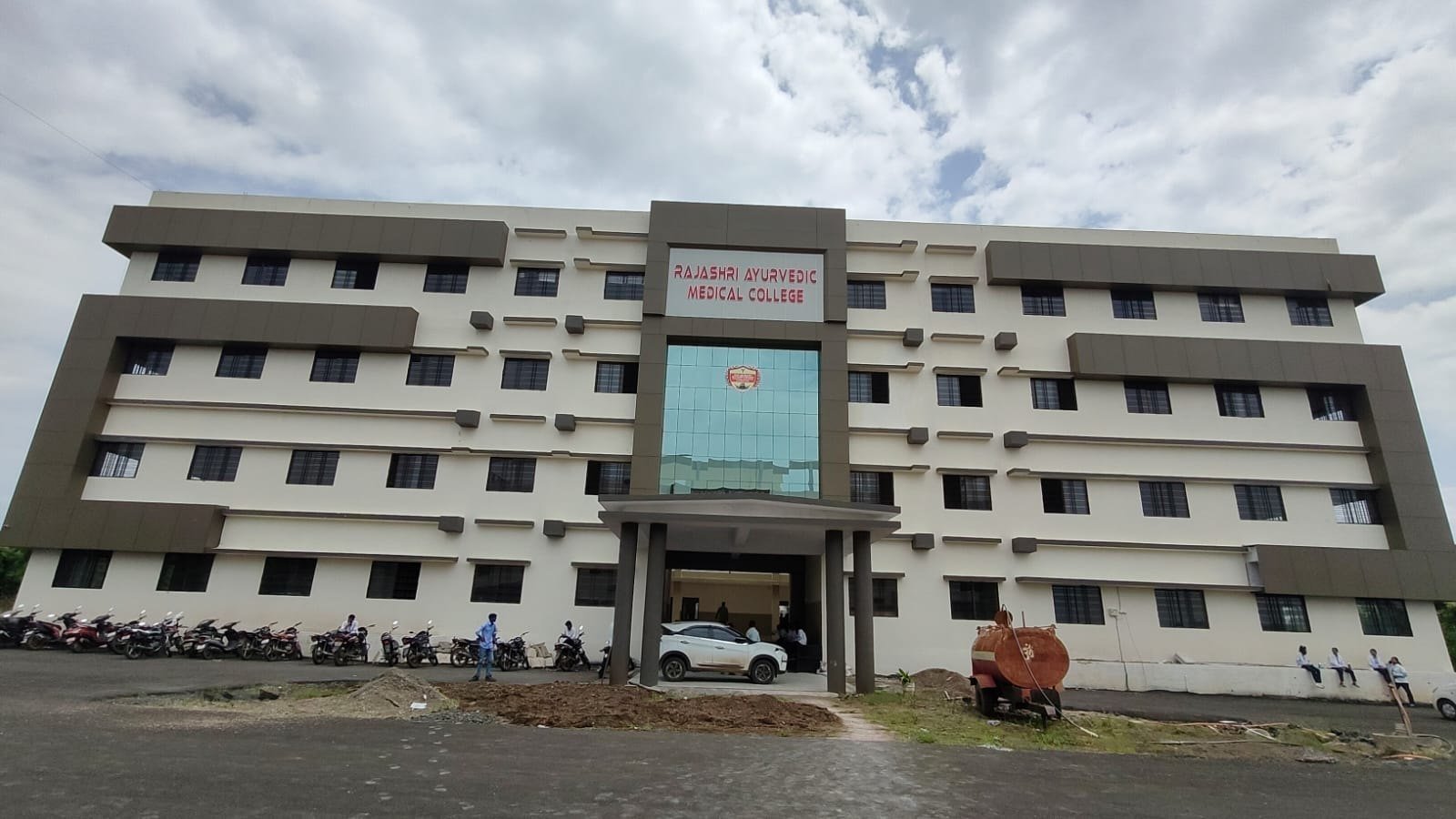

Mehkar, Buldhana · ~1,13,000 sq.ft campus · Multi-storey academic & clinical blocks
A comprehensive campus comprising the medical college and its attached teaching hospital, engineered to support the specialised loading and long-span requirements of institutional healthcare and educational facilities.

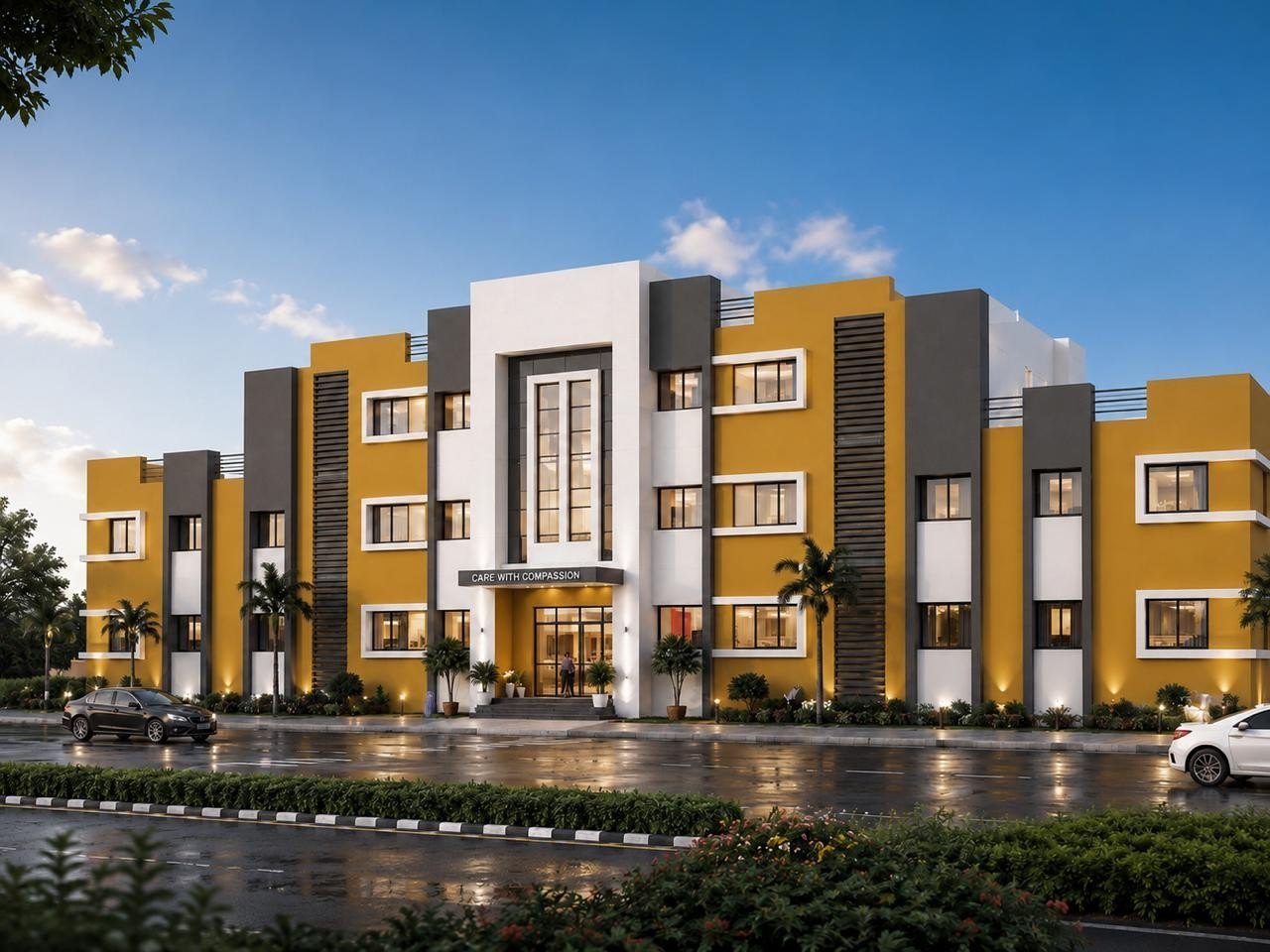

Lonar, Buldhana · Combined ~72,425 sq.ft
Twin institutional buildings for the Late Karima Bahu — Uddeshiya Social Welfare Society: a Unani medical college (41,260 sq.ft) and its adjoining hospital (31,165 sq.ft), structurally engineered as an integrated medical education and healthcare campus.
Flagship — Residential

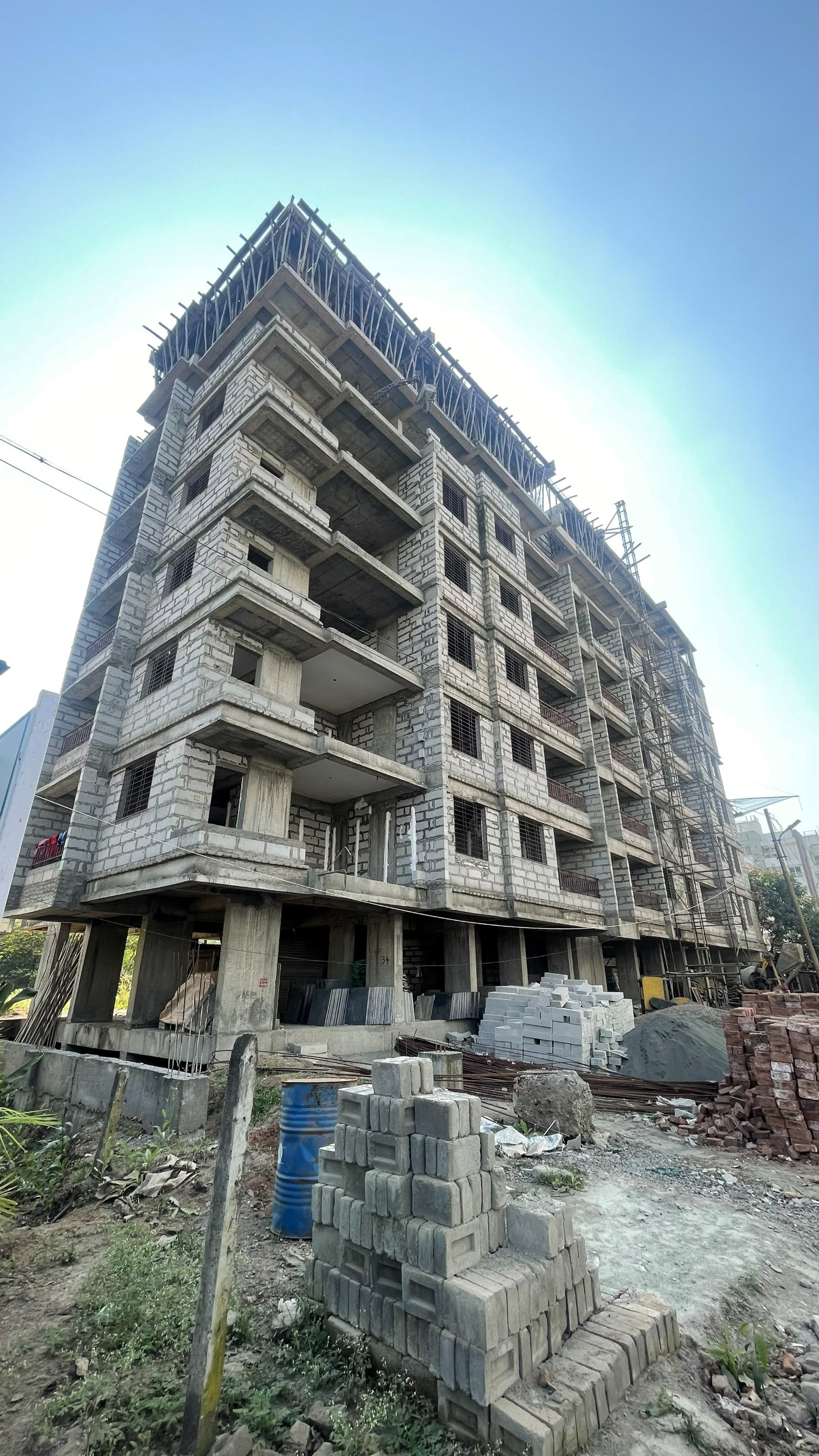

Moshi, Pune · 54,000 sq.ft · Basement + Ground + 7 Floors
A 54,000 sq.ft residential development at Moshi, structurally engineered as an RCC framed building over a full basement. The basement carries parking and services, which sets the column grid for everything above it — so the transfer between basement and the seven residential floors was resolved first and the apartment planning worked to it.
Design and detailing covered the complete frame: foundations, columns, beams, slabs and staircases, together with reinforcement drawings and bar-bending schedules issued for site execution.
Site film Moshi, Pune
Flagship — Residential

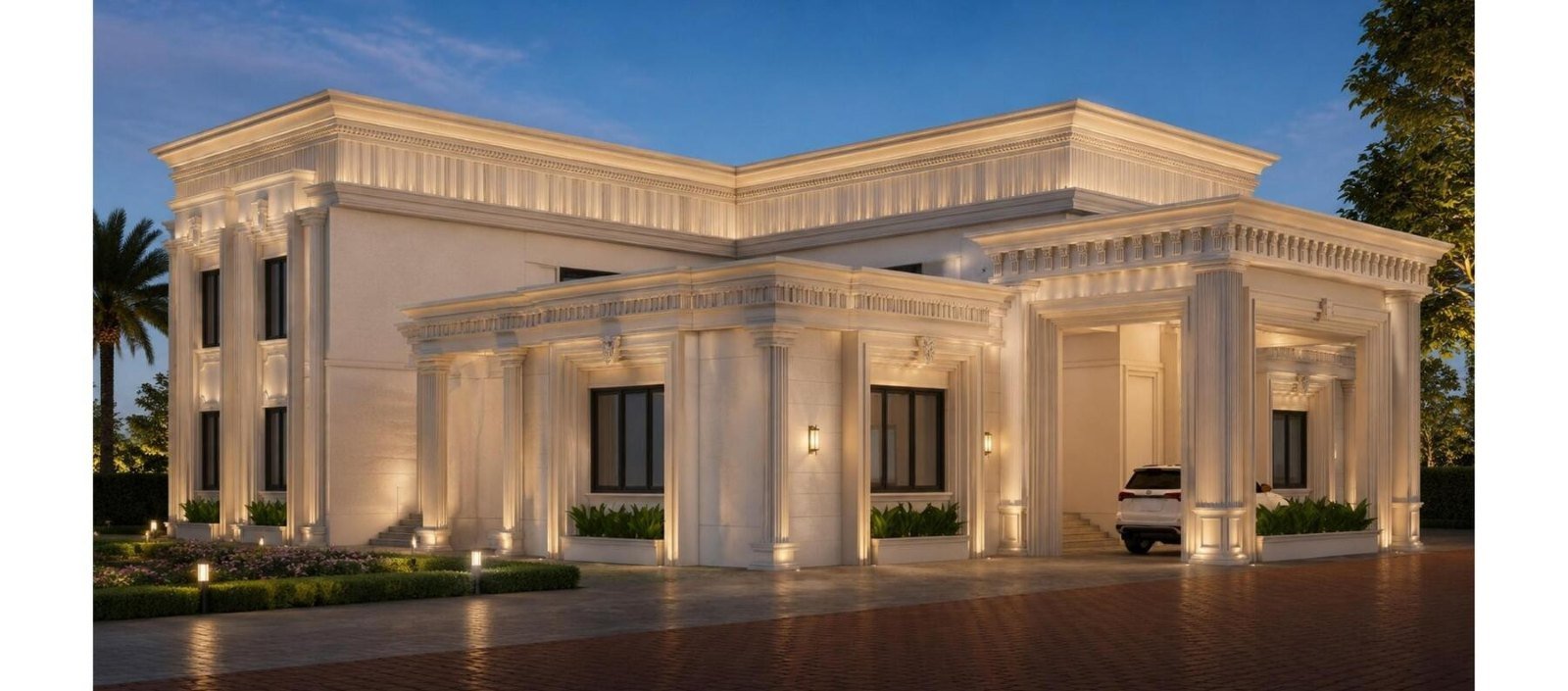

Mehkar, Buldhana · 13,500 sq.ft · Ground + 1 Floor
A grand G+1 residence spanning 13,500 sq.ft, structurally engineered for a classical-style facade with deep colonnades, ornamental cornices and a porte-cochère entrance. Long clear spans behind the colonnade and the cantilevered entrance canopy set the framing strategy for the house.
Structural design by Shree Planning & Structural Consultants, in collaboration with Anarchment Studio for architectural design.
In Progress — Structural Analysis
Dadar, Mumbai · Client: Anchor Realty · 4 Basement + Ground + 6 Podium + E-Level + 34 Residential Floors

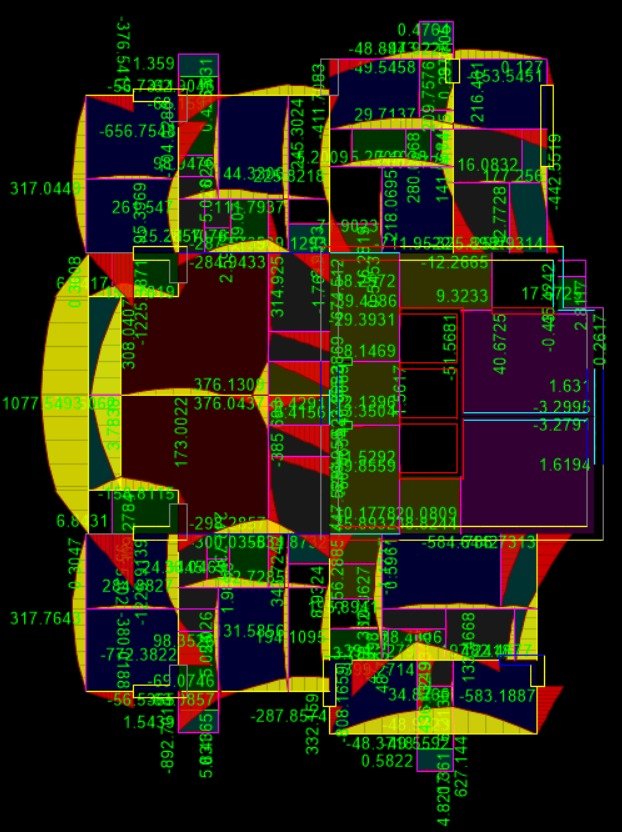

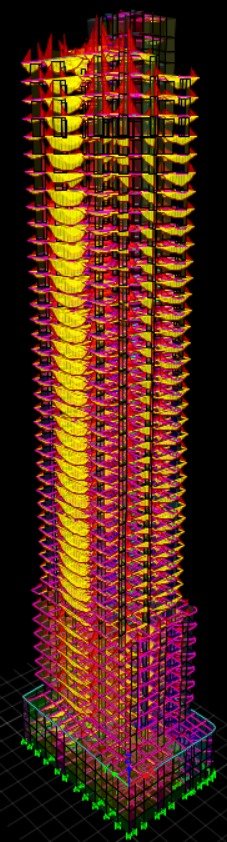

Anchor Sky is currently under structural design in ETABS, modelled as a complete basement-to-roof RCC frame — a total height that places lateral stability, not just gravity framing, at the centre of the design. The full 3D model captures every column, beam, shear wall and slab, allowing the lateral load-resisting system to be verified together with the gravity system rather than in isolation.

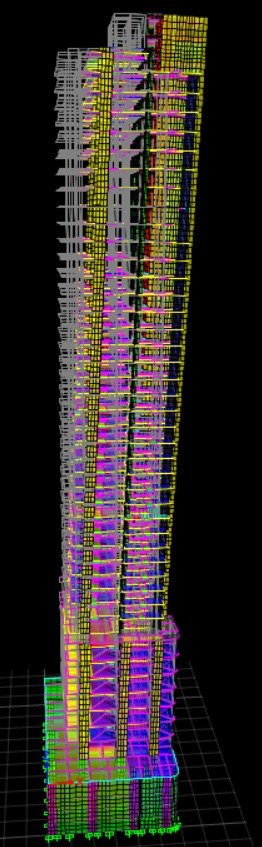

For a tower of this height, wind response governs much of the design: the first mode shape establishes the building's fundamental sway period, while the gust deflection profile plots lateral drift up the full height of the tower under wind gust loading — checked against code-permissible inter-storey drift and overall sway limits to keep occupant comfort and structural serviceability within safe bounds.
Flagship — Commercial
44,000 sq.ft · G + 3
A ground+3 storey retail and commercial complex, structurally designed to accommodate large open retail floor plates and multi-tenant commercial layouts.
13,500 sq.ft · B + G + 4

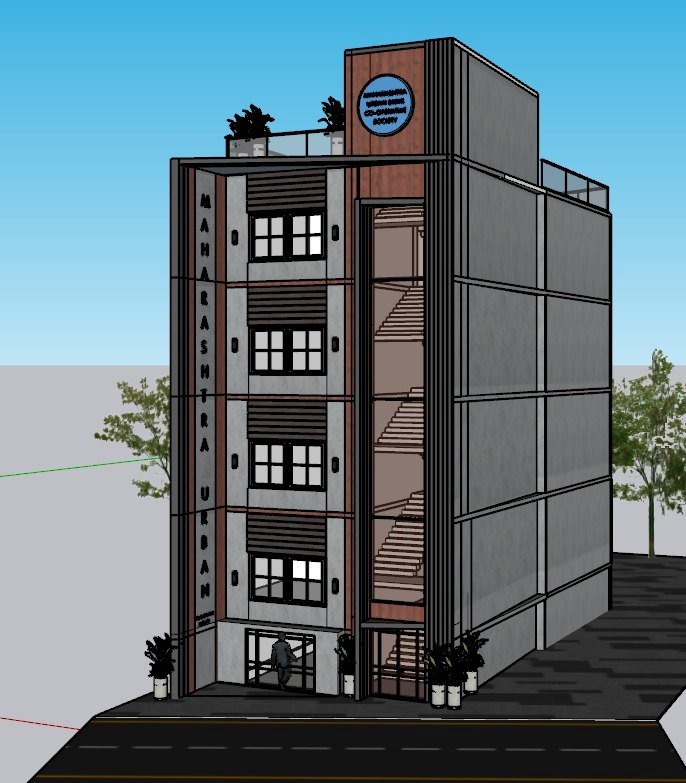

A basement+ground+4 storey commercial building for the bank's administrative and operational headquarters, balancing a compact urban footprint with the durability demands of a busy banking operation.
RCC 4,200 sq.ft + MS
A control centre facility designed to house critical plant operations and monitoring systems within a robust industrial-commercial structure. Delivered alongside a companion Security Block at the same facility.
Institutional
Samata Colony, Dharashiv · Ground Floor Only · RCC 2,800 sq.ft + M.S. 400 sq.ft
A single-storey RCC facility combining 2,800 sq.ft of RCC construction with a 400 sq.ft mild-steel canopy. The design's defining challenge is the 3 m cantilevered entrance canopy slab, projecting completely unsupported at the front and carried on a uniform 250 mm depth across its full span — a slenderness that demanded careful top-reinforcement detailing, root shear checks and deflection control. Unusually, the cantilever also has no back-span support at the same structural level, since the anchoring roof slab lands at a higher floor level; resolving this vertical offset while maintaining moment continuity and construction-stage stability was the key structural exercise on this project.
Dharashiv · Ground Floor Only · 3,950 sq.ft
A 3,950 sq.ft single-storey public facility in Dharashiv, structurally designed to provide open, column-efficient reading and stack areas suited to modern library planning — delivered alongside the neighbouring Women's Gym as part of our institutional works in the district.
Residential
Bungalows across Maharashtra, each engineered around its own architectural language — from classical colonnades and porte-cochères to cantilevered balconies, full-height glazing and grid-slab systems.
2,100 sq.ft · G + 1

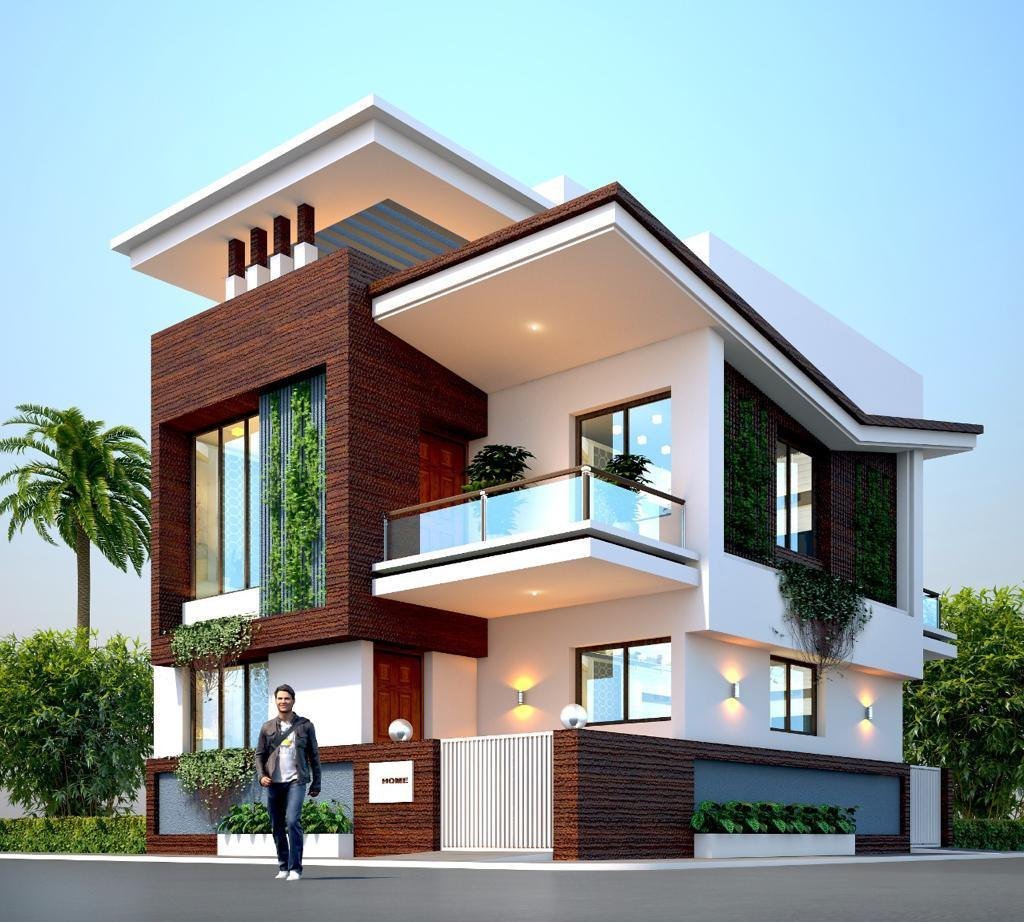

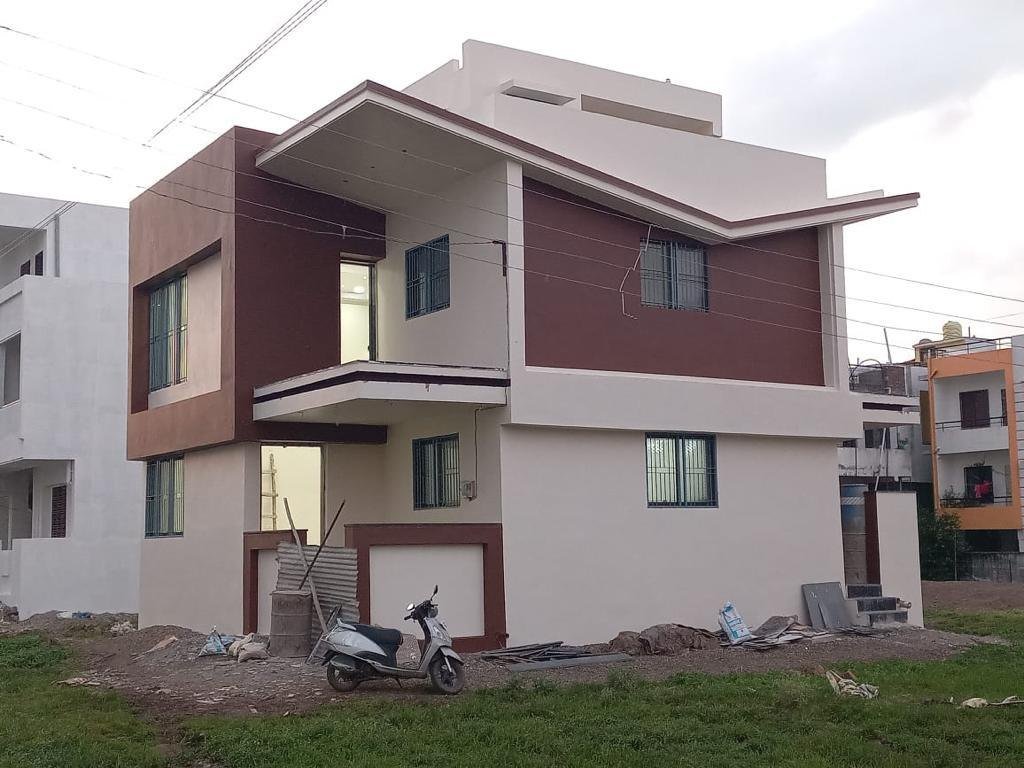

A G+1 residence structurally engineered to support a contemporary facade with cantilevered balcony projections, full-height glazing and a floating canopy roof at the entrance — delivered from foundation through to the completed structure. Drag the handle above to compare the render against what was built.
5,000 sq.ft · G + 1
Features a grid slab — a two-way ribbed RCC slab cast as an orthogonal grid of intersecting beams rather than a solid section, letting the structure span considerably longer distances than a conventional flat slab of comparable depth. By concentrating material along the rib lines, the grid slab achieves a high stiffness-to-self-weight ratio while keeping dead load, and therefore foundation and framing costs, in check.
5,400 sq.ft · G + 1
6,000 sq.ft · G + 2
3,500 sq.ft · G + 1
5,100 sq.ft · G + 1
7,216 sq.ft · G + 3
8,000 sq.ft · G + 3
5,000 sq.ft · G + 1
Infrastructure & Industrial
National Highway Works

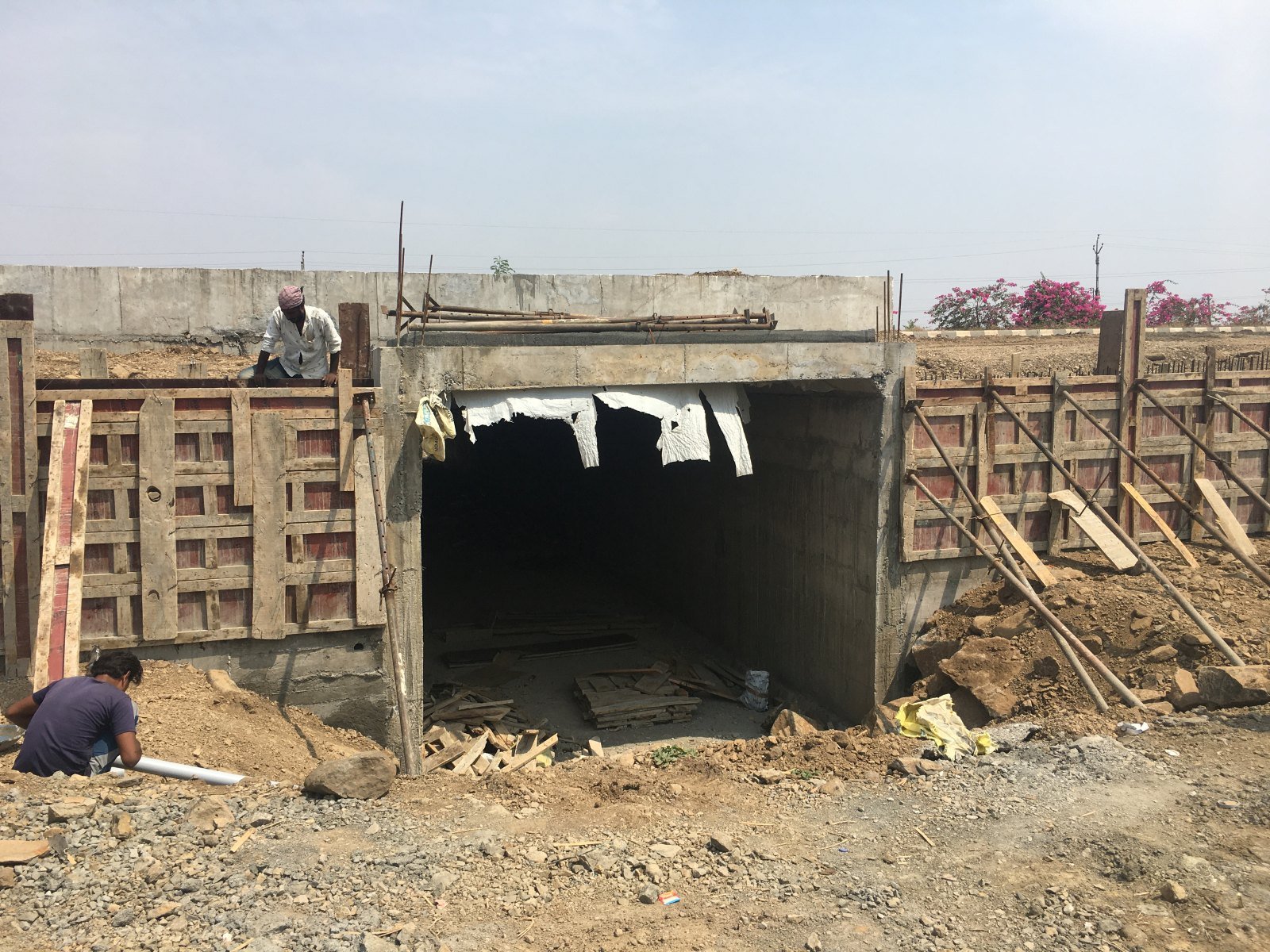

A reinforced concrete box culvert built as part of link road works on National Highway NH361, engineered to safely carry highway traffic loads over the culvert structure.
RCC 5,500 + PEB 5,500 sq.ft
A small and medium scale industrial shed with a basement godown for raw material storage, combining conventional RCC construction with a pre-engineered building structure.
Water Intake Infrastructure
A jackwell structure built on the Mula-Mutha river, engineered to support critical water intake infrastructure for industrial operations.
Complete Portfolio
A comprehensive record of our completed and ongoing structural design assignments across Maharashtra and Karnataka.
| Project | Location | Area / Configuration |
|---|---|---|
| Rajashree Ayurvedic Medical College & Hospital | Mehkar, Buldhana | 1,13,000 sq.ft |
| Rajashri Ayurvedic Medical College | Mehkar, Buldhana | 65,000 sq.ft (G+3) |

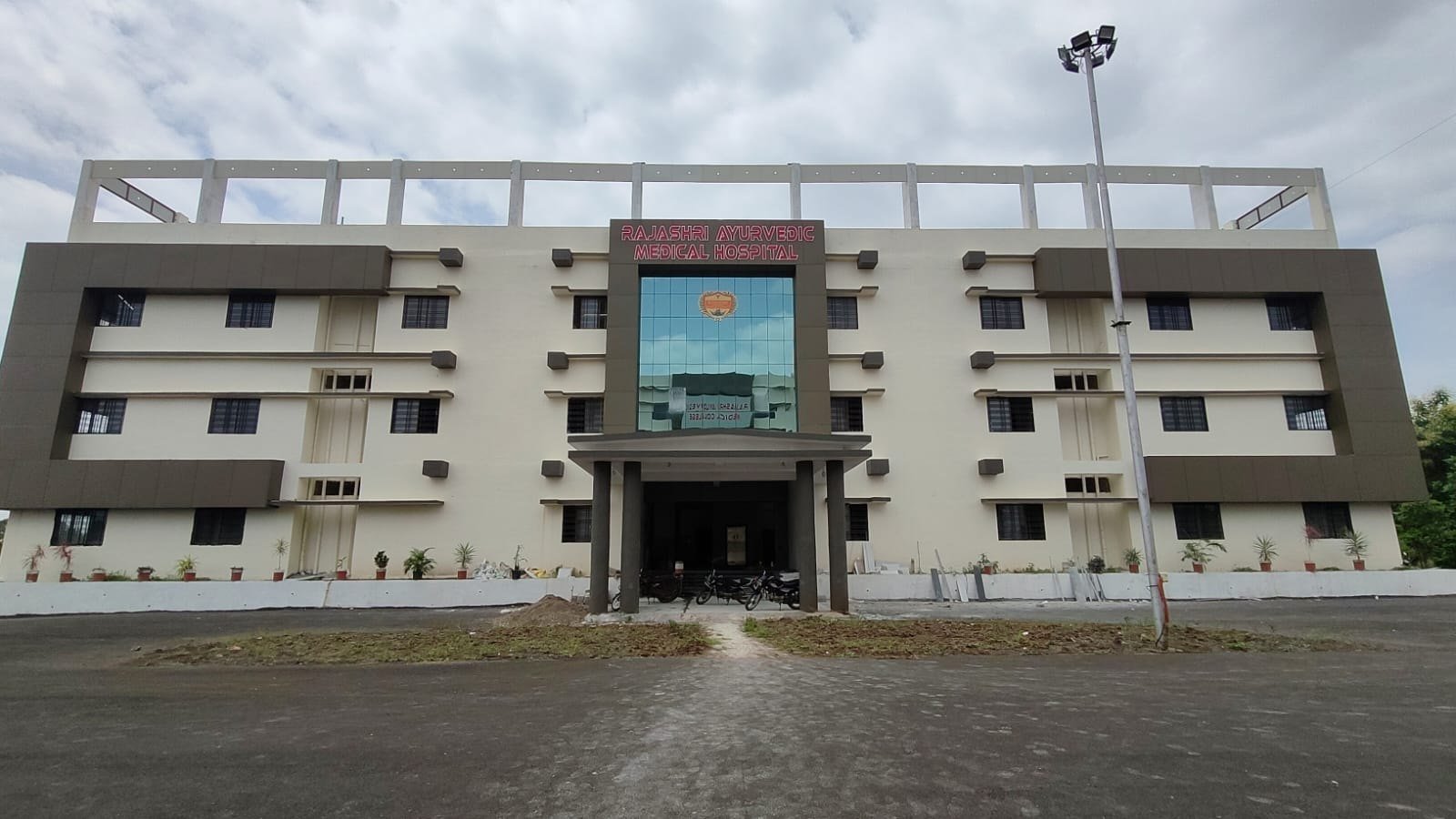

| Rajashri Ayurvedic Medical Hospital | Mehkar, Buldhana | 48,000 sq.ft (G+2) |
| Rajashri College of Pharmacy | Mehkar, Buldhana | 34,900 sq.ft (G+3) |
| Girls Hostel — Rajashri Campus | Mehkar, Buldhana | 38,000 sq.ft (G+3) |
| Late Karima Bahu — Uddeshiya Social Welfare Society's Unani College | Lonar, Buldhana | 41,260 sq.ft |
| Late Karima Bahu — Uddeshiya Social Welfare Society's Unani Hospital | Lonar, Buldhana | 31,165 sq.ft |
| Rajashree Shahu College of Nursing | Washim | 34,930 sq.ft |
| Project | Location | Area / Configuration |
|---|---|---|
| Maharashtra Urban Co-Operative Bank — Commercial Building | Buldhana | 13,500 sq.ft (B+G+4) |
| Shivhari Commercial Complex | Lonar, Buldhana | 44,000 sq.ft (G+3) |
| Women's Gym | Dharashiv | RCC 2,800 sq.ft + MS 400 sq.ft (G) |
| Mahsul Bhavan at Sindhkhed Raja | Sindhkhed, Jalna | 39,000 sq.ft (G+2) |
| D. L. Empire Medicare Storage & Administrative Building | Hadapsar, Pune | 78,000 sq.ft (B+G+4) |
| Control Centre at Palletizing Plant No. 2, MSPL | Sandur, Karnataka | RCC 4,200 sq.ft + MS |
| Security Block at Palletizing Plant No. 2, MSPL | Sandur, Karnataka | RCC 4,150 sq.ft + MS 1,500 sq.ft |
| E-Library | Dharashiv | 3,950 sq.ft (G) |
| Project | Location | Area / Configuration |
|---|---|---|
| Sky Blue Project | Dighi, Pune | 1,65,000 sq.ft (2B+G+15) |
| Skylark Apartment | Moshi, Pune | 54,000 sq.ft (B+G+7) |
| Laxman Wadekar Apartment | Hinjewadi, Pune | 37,300 sq.ft (B+G+9) |
| Pradeep Sarkar Bungalow | Kusgaon Bk., Lonavala, Pune | 13,000 sq.ft (B+G+2) |
| Rushikesh Jadhav Residence | Mehkar, Buldhana | 13,500 sq.ft (G+1) |
| J. S. Sawant Apartment | Sambhajinagar | 32,000 sq.ft (B+G+5) |
| Raut's Apartment | Washim | 24,000 sq.ft (B+G+4) |
| Mayur Pawar's Apartment | — | 17,000 sq.ft (B+G+4) |
| Pawan Mangalkar Latur Apartments | Latur | 8,000 sq.ft (P+4) & 12,000 sq.ft (P+5) |
| Prakash Apartment | Wagholi, Pune | 15,000 sq.ft (P+5) |
| Patel Apartment | Wagholi, Pune | 8,800 sq.ft (P+5) |
| Suhasini Pawar | Jawhar | 6,700 sq.ft (G+3) |
| Swara Girls Hostel | Rajewadi, Jawhar, Palghar | 9,850 sq.ft (LG+G+2) |
| Kedar Dalavi Bungalow | Sus, Pune | 7,216 sq.ft (G+3) |

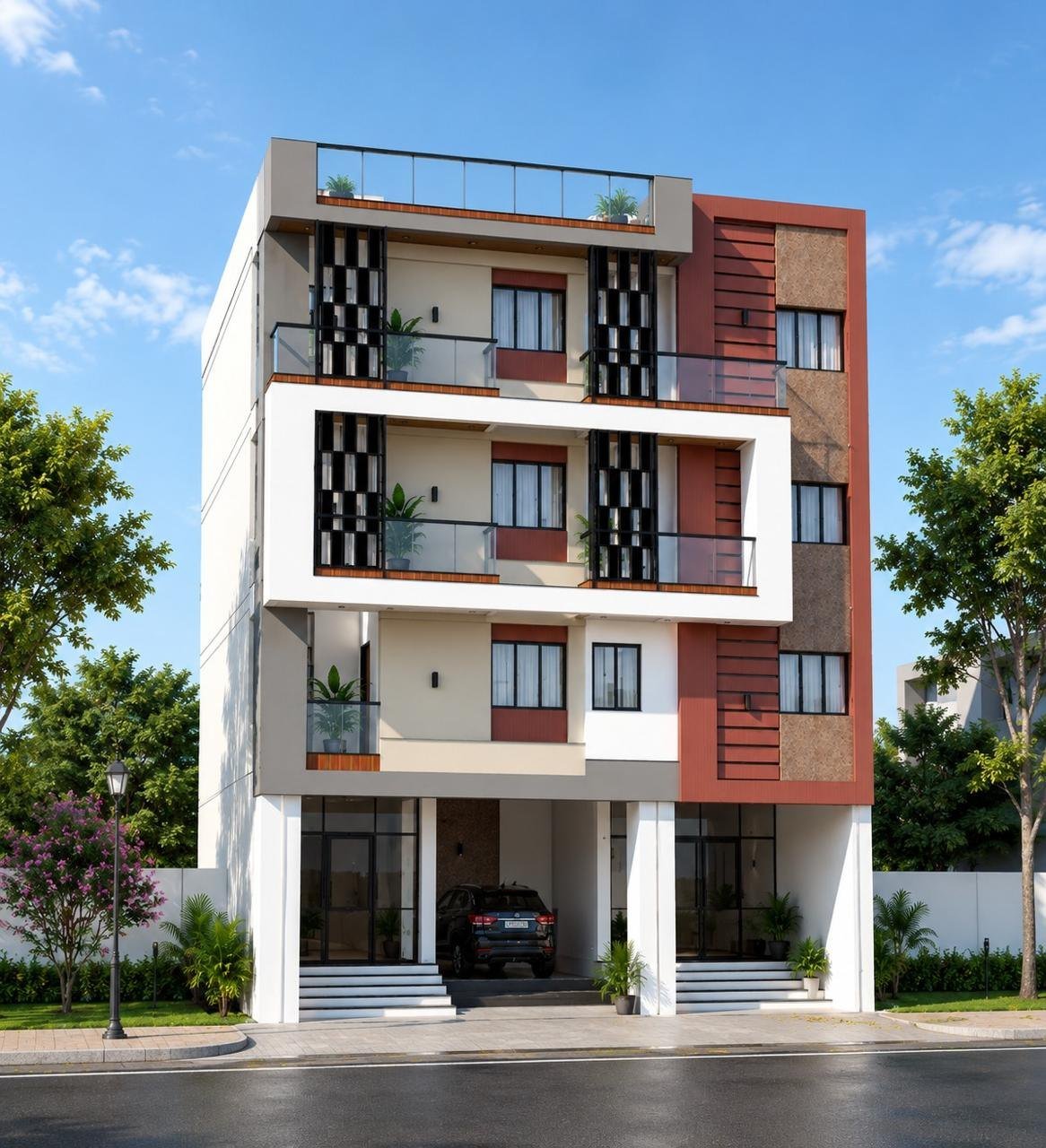

| Dr. Ovar Bungalow | Mehkar, Buldhana | 8,000 sq.ft (G+3) |

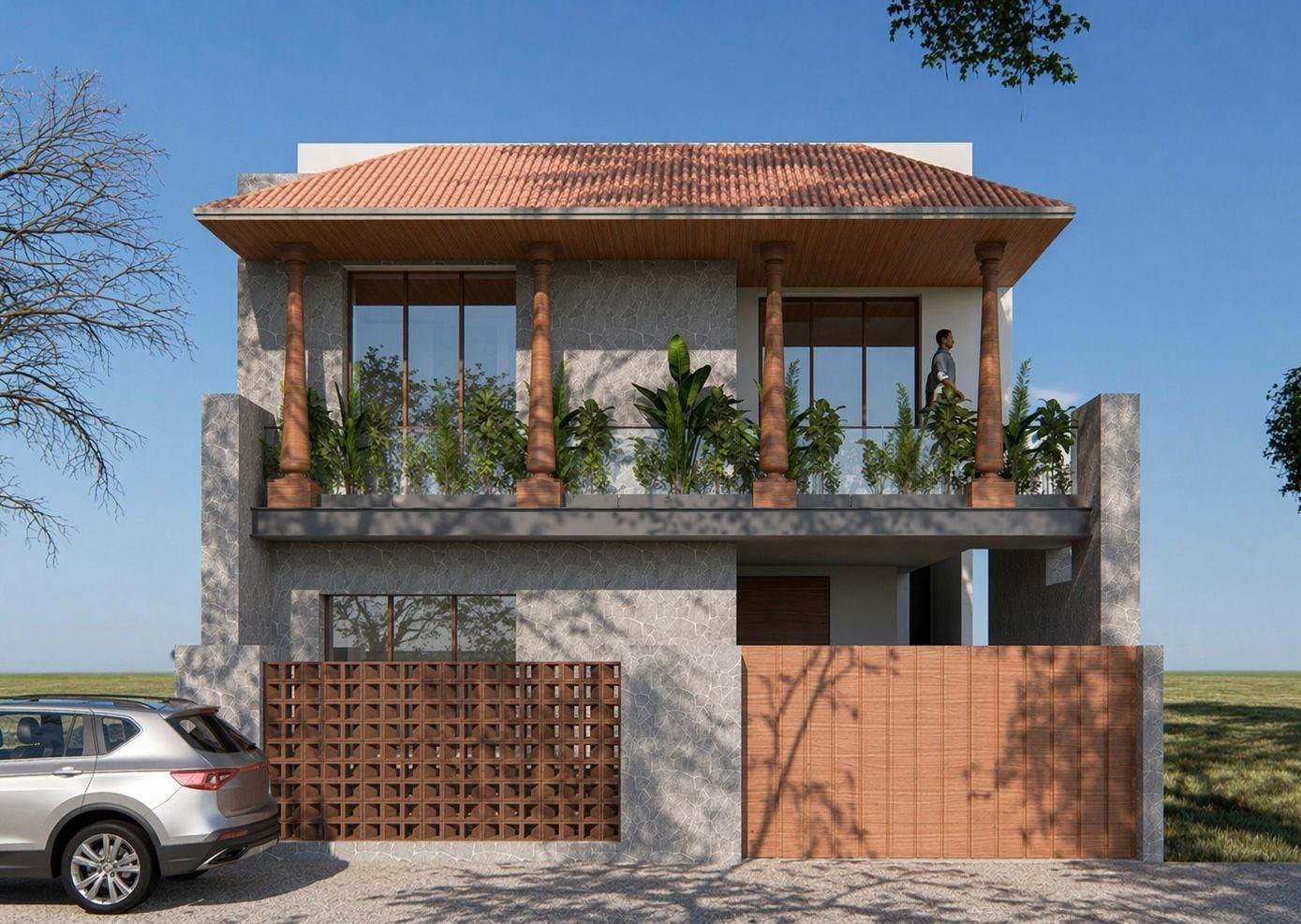

| AKR Bungalow | Dharashiv | — |

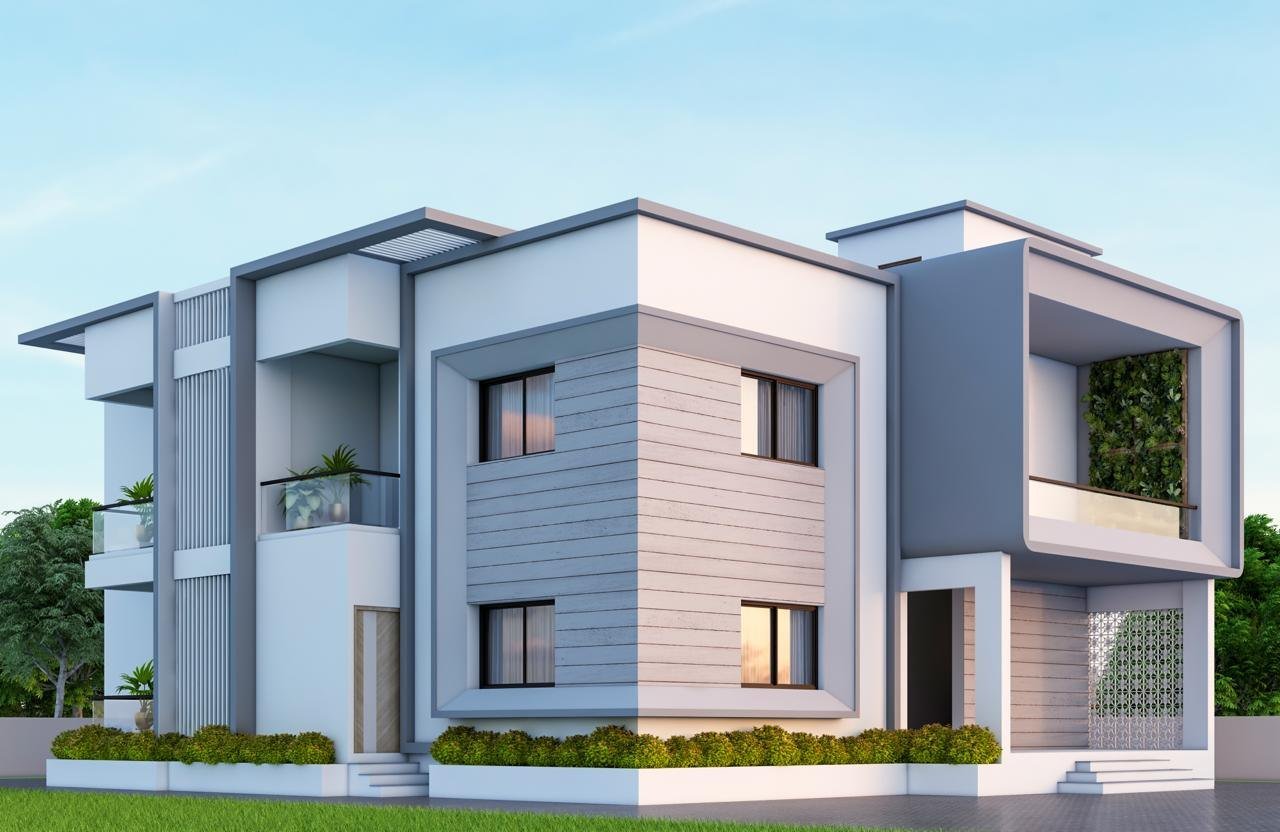

| Pankaj Shivale Bungalow | Tulapur, Pune | 5,400 sq.ft (G+1) |

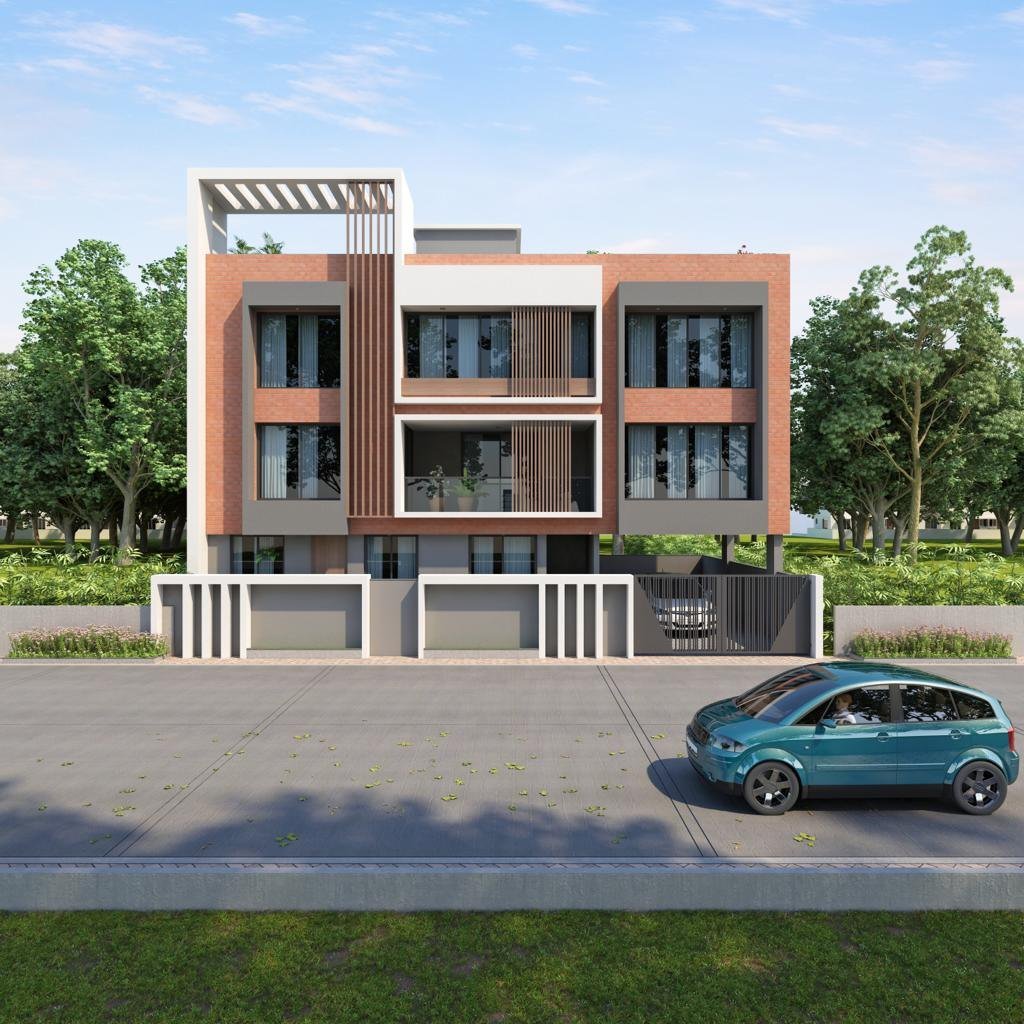

| Ravi Salve Bungalow | Charholi, Pune | 6,000 sq.ft (G+2) |

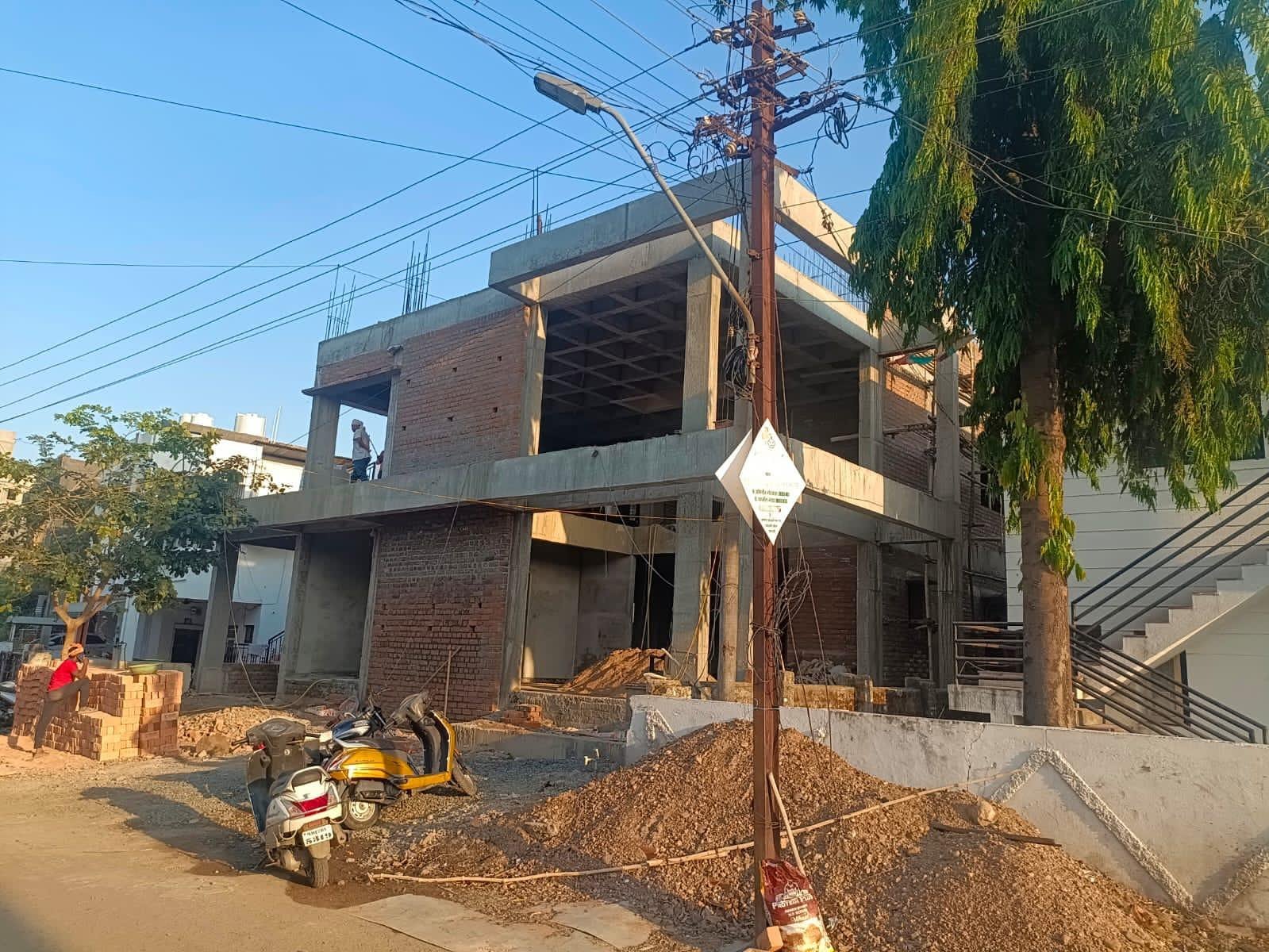

| Rohan Bhokare Bungalow | Amrawati | 5,000 sq.ft (G+1) |

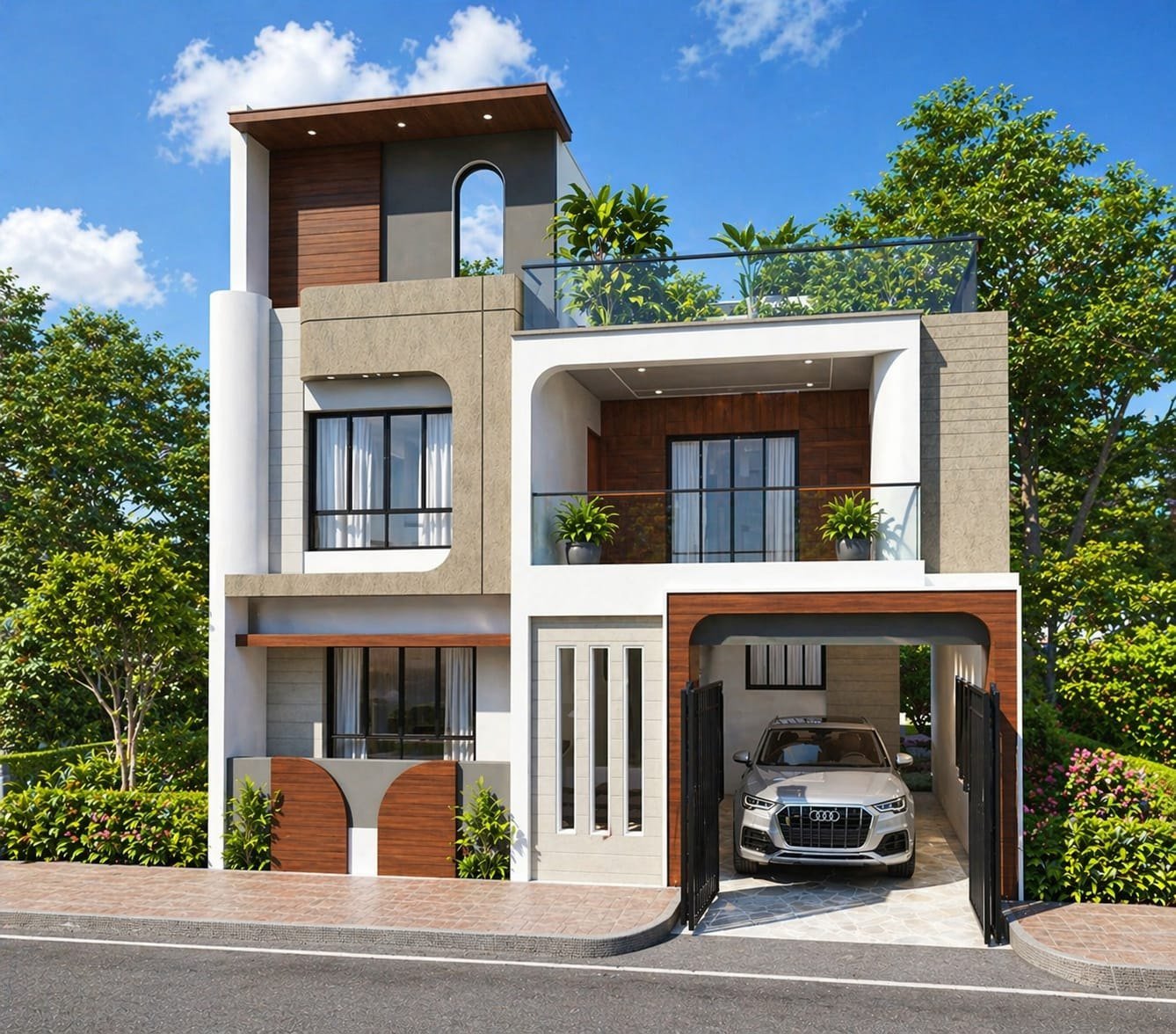

| Sachin Katore Bungalow | Basmath, Hingoli | 3,500 sq.ft (G+1) |

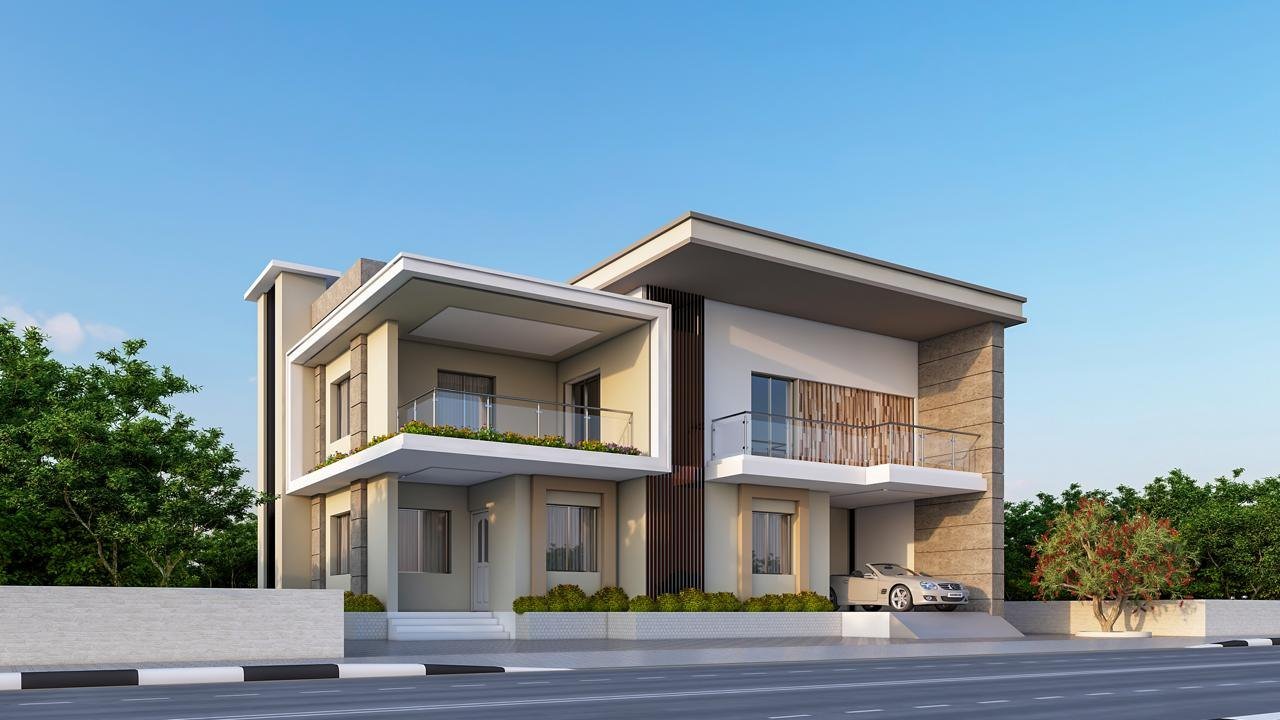

| Santosh Lahane Bungalow | Tulapur, Pune | 5,100 sq.ft (G+1) |
| Bavne Bungalow | Lonar, Buldhana | 2,100 sq.ft (G+1) |
| Project | Location | Area / Configuration |
|---|---|---|
| Shree Mangal Karyalaya | Lonar, Buldhana | RCC 31,600 sq.ft + PEB 14,250 sq.ft |
| S. S. Highschool | Lonar, Buldhana | 20,000 sq.ft (G+4) |
| PHC Subcentres — Kakrambha & Itkal | Dharashiv | 8,600 sq.ft each (G+2) |
| Project | Location | Area / Configuration |
|---|---|---|
| Lohia Mechatronik Pvt. Ltd. — Industrial & Commercial Building | Hadapsar, Pune | RCC 70,000 + PEB 10,610 sq.ft (B+G+6) |
| Small & Medium Scale Industrial Shed with Basement Godown | Shirwal MIDC, Pune | RCC 5,500 + PEB 5,500 sq.ft |
| Box Culvert — Link Road on NH361 | Patoda, Tuljapur-Latur Road | National Highway Works |
| Box Culvert — Link Road on NH48 | Karla, Mumbai-Pune Old Highway | National Highway Works |
Water supply infrastructure — 175+ structures spread across the districts of Pune, Satara, Akola, Buldhana, Dharashiv, Latur and Hingoli in Maharashtra and Karnataka. See the full breakdown
Full portfolio, as a PDF
